FXS2828134L100-R08W3.0-A
電氣特性
No.
ITEM
UNIT
VALUE
1

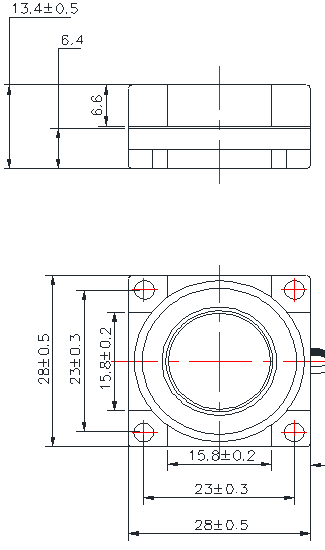

Length/Diameter
mm
28
2
Width
mm
28
3
Height
mm
13.4
4
Nominal Power
W
3
5
Max Power
W
4
6
Impedance
Ω
8
7
Min. SPL*
dB
89
8
Resonant Frequence
Hz
750
9

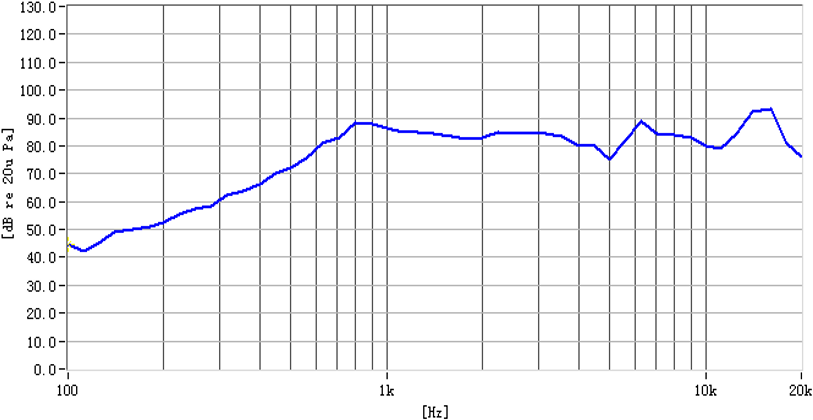

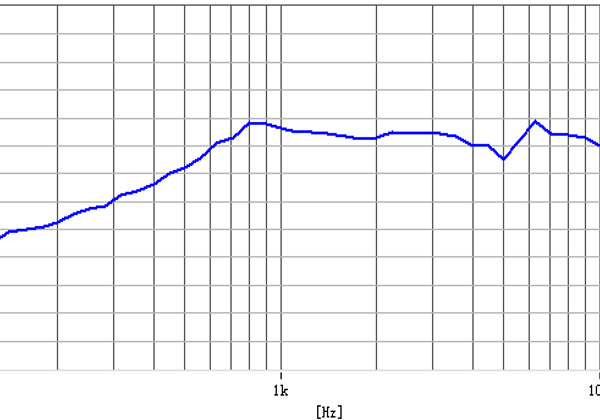

Frequency Range
Hz
750~6K
