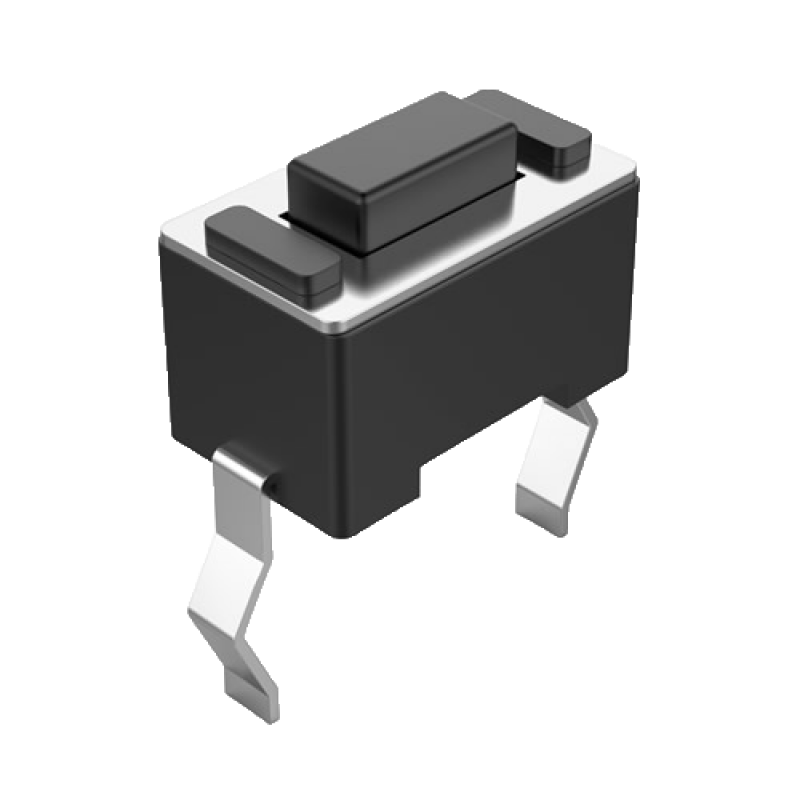

輕觸開關FVBP06
Items
Standard
Operating temperature range
-20℃ to +70℃
Rating
50mA. 12VDC
Electrical
Insulation resistance
100MΩ min. 100VDC
performance
Dielectric strength
250V AC for 1 min.
Contact resistance
100mΩ max.
Durability
Lifetime
100,000Cycles; 50,000Cycles
Mechanical
Operating force
70gf; 130gf; 180gf; 250gf
performance
Travel
0.25 ± 0.1mm
