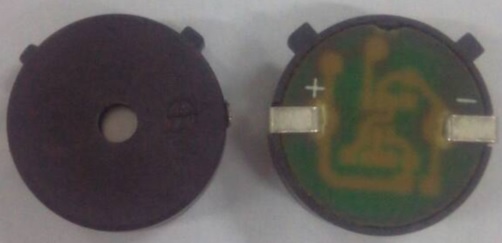

壓電內激式蜂鳴器SPS1760
ITEM
VALUE
Product No.
SPS1760
Product Type
壓電內激式蜂鳴器

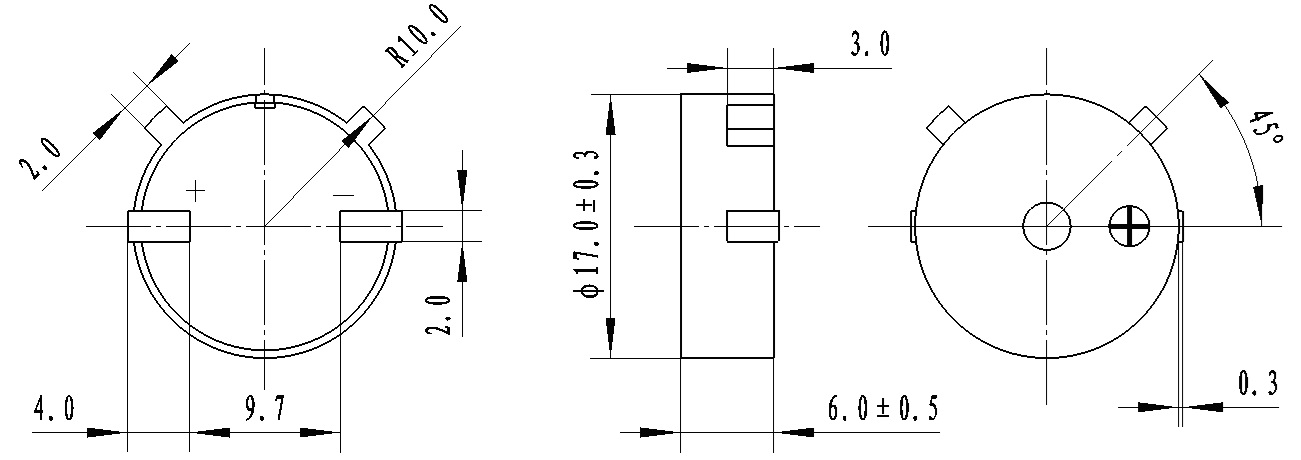

Size
Φ17mm
Height
6mm
Sound-hole Location
上發聲Top
Terminal Type
SMD
Weight
2.3g
Housing Material
PPS
電氣特性
No.
ITEM
UNIT
VALUE
1
Rated Voltage
VDC
12
2
Operating Voltage
VDC
3~16
3
Rated Current
mA
12
4
Sound Output at 10cm
dB
90
5
Frequency
Hz
4000
6
Operating Temperature
℃
-40 ~ +85
7
Storage Temperature
℃
-40 ~ +85
