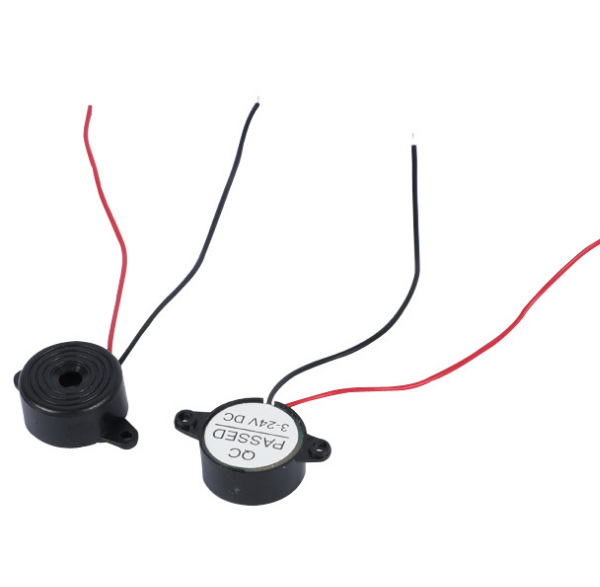

壓電內激式蜂鳴器PS23120W24-33H
ITEM
VALUE
Product No.
PS23120W24-33H
Product Type
壓電內激式蜂鳴器

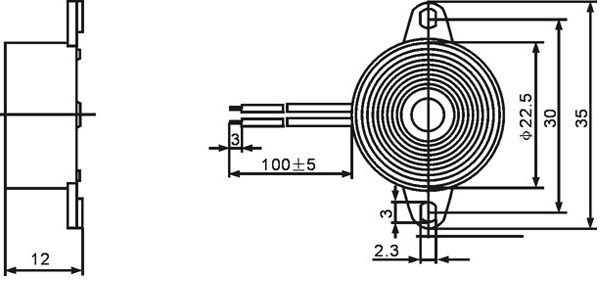

Size
22.50mm
Height
12.00mm
Sound-hole Location
上發聲Top
Terminal Type
Wire
Weight
14g
Housing Material
ABS
電氣特性
No.
ITEM
UNIT
VALUE
1
Rated Voltage
VDC
24
2
Operating Voltage
VDC
18~26
3
Rated Current
mA
23
4
Sound Output at 10cm
dB
85
5
Frequency
Hz
3300
6
Operating Temperature
℃
-20 ~ +80
7
Storage Temperature
℃
-30 ~ +85
