Home Service and Product Speaker
Return to previous page
FXS5353305-R08W10-175_Front
FXS5353305-R08W10-175_Back

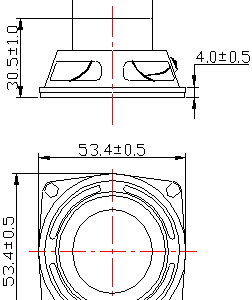

FXS5353305-R08W10-175_Dimension

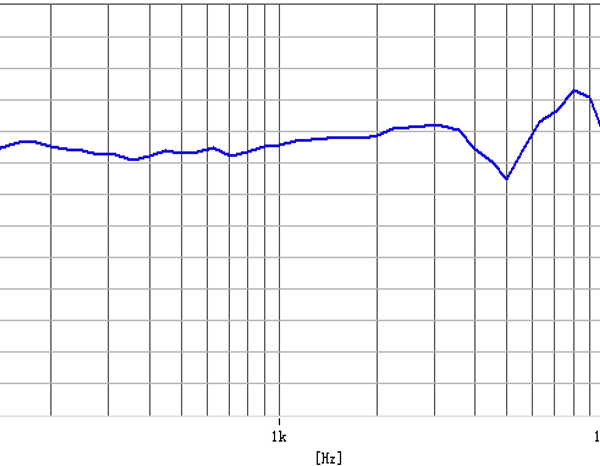

FXS5353305-R08W10-175_Freq
  • FXS5353305-R08W10-175_Front
  • FXS5353305-R08W10-175_Back
  • FXS5353305-R08W10-175_Dimension
  • FXS5353305-R08W10-175_Freq

FXS5353305-R08W10-175

Category: Speaker
Tag: Speaker

Product Categories

  • Tact Switch (99)
    • A . Tact Switch Mini type Series (29)
    • B . 3×6 Series (19)
    • C . 5.2×5.2 Series (14)
    • D . 6×6 Series (16)
    • E . 6.2×6.2 Series (12)
    • F . Soft Series (5)
    • G . 12×12 Series (4)
  • Buzzer (247)
    • Piezo buzzer(self drive) (40)
    • Piezo buzzer(external drive) (34)
    • Magnetic buzzer(self drive) (39)
    • Magnetic buzzer(external drive) (60)
    • SMD type (74)
  • Piezo Element (1)
  • Driver IC for buzzer (0)
  • Speaker (41)
  • Wire Harness/ Cable Assemblies (3)
  • uncategorize (0)
  • Description

Electrical characteristics

No.
ITEM
UNIT
VALUE
1
Length/Diameter
mm
53
2
Width
mm
53
3
Height
mm
30.5
4
Nominal Power
W
10
5
Max Power
W
15
6
Impedance
Ω
8
7
Min SPL*
dB
84
8
Resonant Frequence
Hz
200
9
Frequency Range
Hz
200~10K
FXS40180-R04W2.0-C

FXS40180-R04W2.0-C_Front
FXS2511050-R08W1.0
FXS2511050-R08W1.0
